Products

• Type: Gas Delivery Final Line Regulators, Tamper Proof Liquid Cylinder CGA Connection Fittings, Block Line Safety’s, Liquid Cylinder Safety Relief Valves, CGA Connection Cylinder Backflow Check Valves, Helium Dewar Relief Valves, Cryogenic Pump and Compressor Relief and Check Valves, Sampling Needle Valves, Personal Portable Liquid Oxygen Based Inhalation Therapy Equipment Relief Valves
• Certifications: PED Cat I and Cat IV, CRN, Oxygen Service

• Type: Factory Present, Precision, High Flow, Cryogenic, Block Line/Thermal Safety, Adjustable and Non-Adjustable
• Sizes: 1/8″ – 3/4″

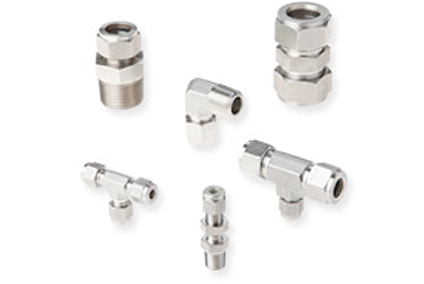

• Connections: NPT, Bi-Lok Dual Ferrule Tube, BSPT, BSPP, SAE, JIC, Face Seal
• Configurations: Vent to Atmosphere and In-Line
• Pressure: 0.5 – 2400 PSI
• Materials of Construction: Brass, Stainless, Aluminum, 17-4 PH
• Certifications: PED Cat I and Cat IV, CRN, Oxygen Cleaning

• Type: Fixed and Adjustable Cracking Pressures, Poppet, Ball, Lift, Disc, Cartridge, Severe Service and Cryogenic
• Sizes: 1/8″ – 2″
• Connections: NPT, Bi-Lok Dual Ferrule Tube, BSPT, BSPP, SAE, JIC, Face Seal, Cartridge/Manifold
• Configurations: Vent to Atmosphere and In-Line
• Pressure: Vacuum to 10,000 PSI
• Flow Coefficient: Up to 51 Cv
• Materials of Construction: Brass, Stainless, Aluminum, 17-4 PH

• Type: Gas Delivery Final Line Manifold Regulators, Industrial High Capacity, Metal Diaphragm, Quick Acting, Relieving and Non-Relieving, Pilot Operated/Dome Loaded, Panel Mounted
• Sizes: 1/8″ – 1″
• Connections: NPT, BSPT, BSPP, SAE
• Inlet Pressures: to 580 PSI
• Outlet Pressures: 0.5 – 550 PSI
• Flow Rates: to 20,000 SCFH
• Materials of Construction: Brass with Stainless Trim

• Type: Integral and Screwed Bonnet, Forged and Bar Stock Body, Precision Metering, Metal to Metal and Soft Tipo Stem, Wafer Packing
• Sizes: 1/8″ – 1/2″
• Oriffices: .055″ – .312″
• Connections: NPT, BI-Lok Dual Ferrule Tube, BSPT, BSPP, SAE
• Pressure: Vacuum – 5,000 PSI
• Materials of Construction: Brass and Stainless

At the urging of both Industry Leading High Pressure Gas Cylinder Filling Plant Equipment Providers and End Users, Generant has developed a High Pressure Gas master Shutoff/Control Valve line. Series MV valves provide consistent, low operating torque throughout the entire operating pressure range of the valve. The Series MVA is a pneumatically actuated version of valve utilizing a minimum of 85 PSI actuation prssure to operate the valve. Both valve types are third party certified to 5,500 PSI Oxygen Service.

• Type: 1/4 Turn Shut Off, Plug, Quick Acting
• Sizes: 1/8″ – 1/2″
• Connections: NPT, BI-Lok Dual Ferrule Tube
• Pressure: 0 – 2,000 PSI
• Materials of Construction: Brass and Stainless

• Liquid Cylinder Safety Relief Valves
• Tamper Proof Liquid Cylinder CGA Connection Fittings
• Gas Use Outlet Adapter with Integral Check Valve
• Personal Portable Liquid Oxygen Based Inhalation Therapy Equipment Relief Valves

With the knowledge and expertise to apply applicable standards and insure regulatory compliance, Generant can provide a comprehensive design solution in the simplest and most demanding applications.

Our ISO-Approved design and development procedure allows us to quickly and effectively design, prototype, and test new products in a controlled environment.
